Streamline complex lifting tasks with the Boscaro EZ Bar Modular Lifting Frame System, offered by Bigfoot Crane Company. Designed for flexibility and safety, this system adjusts to various load requirements, enhancing operational efficiency.
Bigfoot Crane Company is dedicated to delivering the highest quality under the hook accessories to meet your lifting needs. With a focus on safety, durability, and performance, we provide expertly crafted solutions that are trusted by professionals across the industry. Our team ensures legendary service, quick delivery, and expert customer support, making us the go-to choice for all your lifting accessory requirements.
| Model | Capacity | Dimensions | Male x1 | Female x1 | Assembly Pin | Spreader Bar Frame Corners | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Min. Capacity | Max.Capacity | Min. Length | Min. Width | Max. Length | Max. Width | EZBar-12T | EZBar 15T | 15T-Pin | EZBar 15T-Corner | |
| 15T Frame 1×1 | 33,070 lbs15 Tonnes | 33,070 lbs15 Tonnes | 5’10”1.78 M | 5’11”1.79 M | 5’10”1.78 M | 5’11”1.79 M | 2 | 2 | 12 | 4 |
| 15T Frame 1×3/2×2 | 17,637 lbs8 Tonnes | 26,455 lbs12 Tonnes | 6’7″2.02 M | 5’11”1.79 M | 13’1″3.99 M | 9’6″2.97 M | 4 | 4 | 20 | 4 |
| 15T Frame 1×5/2×4/3×3 | 6,614 lbs3 Tonnes | 17,637 lbs8 Tonnes | 10’4″3.16 M | 5’11”1.79 M | 20’4″6.21 M | 13’1″3.99 M | 6 | 6 | 28 | 4 |
| 15T Frame 3×5/4×4 | 6,614 lbs3 Tonnes | 16,535 lbs7.5 Tonnes | 10’11”3.35 M | 10’1″3.08 M | 20’4″6.21 M | 16’8″5.1 M | 8 | 8 | 36 | 4 |
| 15T Frame 5×5 | 6,614 lbs3 Tonnes | 13,228 lbs6 Tonnes | 14’7″4.45 M | 14’4″4.38 M | 20’4″6.21 M | 20’4″6.19 M | 10 | 10 | 44 | 4 |
| Model | Capacity | Dimensions | Male x1 | Female x1 | Assembly Pin | Spreader Bar Frame Corners | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Min. Capacity | Max.Capacity | Min. Length | Min. Width | Max. Length | Max. Width | EZBar-30T | EZBar 35T | 35T-Pin | EZBar 35T-Corner | |
| 35T Frame 1×1 | 77,162 lbs35 Tonnes | 77,162 lbs35 Tonnes | 8’6″2.59 M | 9’9″2.98 M | 8’6″2.59 M | 9’9″2.98 M | 2 | 2 | 16 | 4 |
| 35T Frame 1×3/2×2 | 50,706 lbs23 Tonnes | 74,957 lbs34 Tonnes | 11’6″3.52 M | 9’9″2.98 M | 21’9″6.63 M | 15’9″4.81 M | 4 | 4 | 24 | 4 |
| 35T Frame 1×5/2×4/3×3 | 15,432 lbs7 Tonnes | 66,139 lbs30 Tonnes | 17’9″5.41 M | 9’9″2.98 M | 35’0″10.68 M | 23’0″7.03 M | 6 | 6 | 32 | 4 |
| 35T Frame 3×5/4×4 | 15,432 lbs7 Tonnes | 44,092 lbs20 Tonnes | 20’7″6.27 M | 18’9″5.73 M | 35’0″10.68 M | 29’0″8.86 M | 8 | 8 | 40 | 4 |
| 35T Frame 5×5 | 15,432 lbs7 Tonnes | 39,683 lbs18 Tonnes | 24’9″7.56 M | 27’10”8.48 M | 35’0″10.68 M | 46’4″11.04 M | 10 | 10 | 48 | 4 |
| Model | Capacity | Dimensions | Male x1 | Female x1 | Assembly Pin | Spreader Bar Frame Corners | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Min. Capacity | Max.Capacity | Min. Length | Min. Width | Max. Length | Max. Width | EZBar-100T | EZBar 110T | 110T-Pin | EZBar 110T-Corner | |
| 110T Frame 1×1 | 242,508 lbs110 Tonnes | 242,508 lbs110 Tonnes | 10’6″3.20 M | 9’2″2.79 M | 10’6″3.20 M | 9’2″2.79 M | 2 | 2 | 16 | 4 |
| 110T Frame 1×3/2×2 | 171,961 lbs78 Tonnes | 238,099 lbs108 Tonnes | 12’2″3.73 M | 10’3″3.20 M | 22’3″6.84 M | 16’5″5.02 M | 4 | 4 | 24 | 4 |
| 110T Frame 1×5/2×4/3×3 | 59,525 lbs27 Tonnes | 198,416 lbs90 Tonnes | 16’11”5.16 M | 10’3″3.20 M | 35’8″10.89 M | 22’5″6.34 M | 6 | 6 | 32 | 4 |
| 110T Frame 3×5/4×4 | 59,525 lbs27 Tonnes | 110,231 lbs50 Tonnes | 21’3″6.48 M | 19’6″5.96 M | 35’8″10.89 M | 29’9″9.07 M | 8 | 8 | 40 | 4 |
| 110T Frame 5×5 | 59,525 lbs27 Tonnes | 97,003 lbs44 Tonnes | 25’5″7.53 M | 28’6″8.71 M | 35’8″10.89 M | 37’0″11.30 M | 10 | 10 | 48 | 4 |

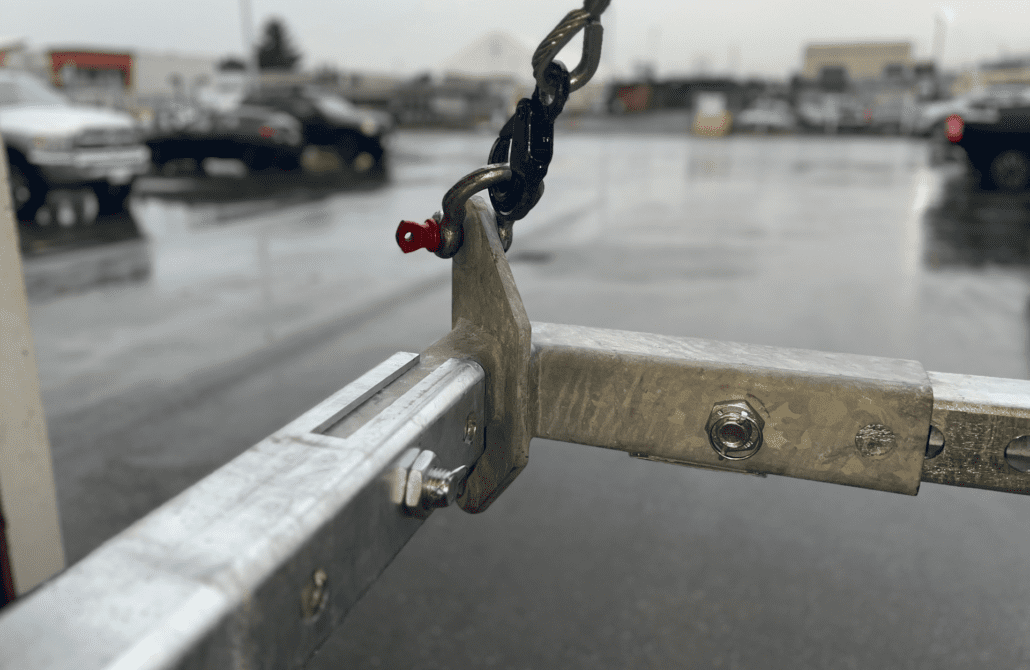

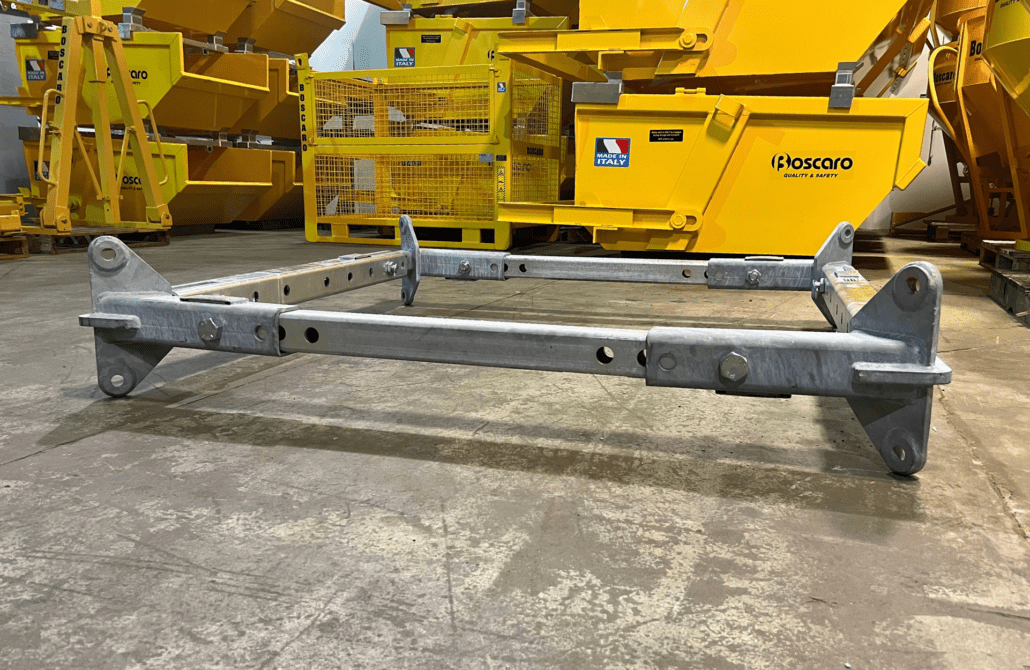

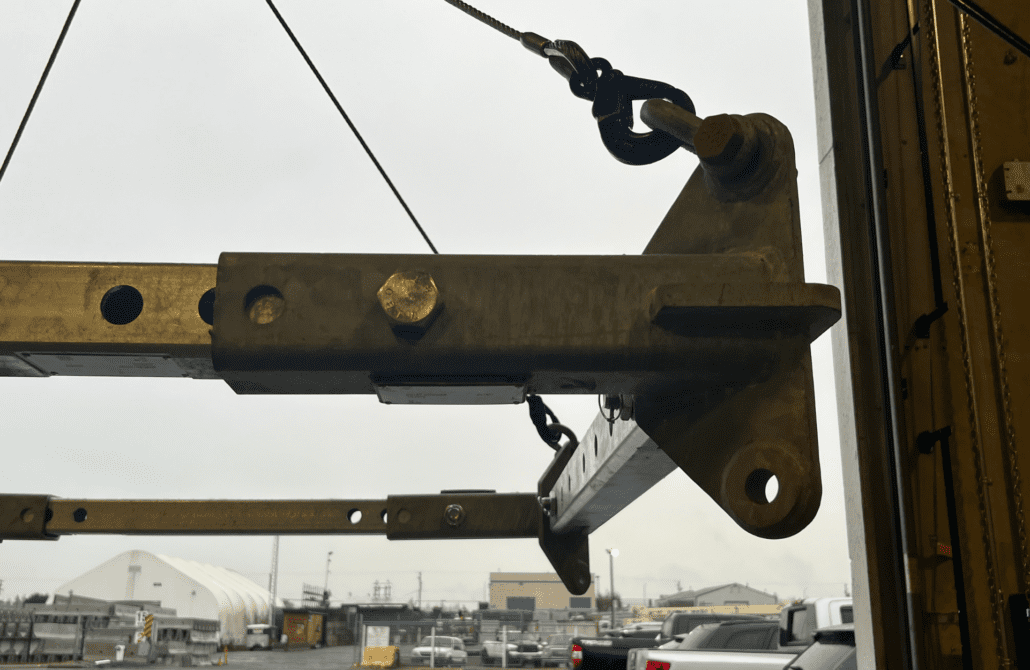

The Boscaro EZ Bar Modular Lifting Frame System, available through Bigfoot Crane Company, revolutionizes lifting operations with its customizable design. This modular system can be configured to different shapes and sizes, accommodating a wide range of loads and applications. Constructed from high-strength steel, the EZ Bar ensures reliable load handling and stability. Its quick-connect components allow for rapid assembly and reconfiguration, significantly reducing setup times and increasing productivity on job sites. Ideal for construction, industrial, and engineering sectors, this system provides a versatile and safe lifting solution.
Due to highly fluctuating steel prices, Bigfoot Crane Company reserves the right to change its pricing to reflect these changes at any time, and on any open quote issued.
We understand this may result in unexpected cost fluctuation, and we are doing everything possible to reduce impact on our customers.
If you have questions, concerns or to get a quote please call 1-855-598-3915.
Thank you for your understanding in this matter.
Bigfoot Crane Company enables extensive customization of the Boscaro EZ Bar Modular Lifting Frame System to suit specific project needs. Clients can select from various modular components to create the optimal configuration for their lifting tasks, including adjustable lengths, widths, and connection types. Customizations such as the addition of swivel hooks, variable spread lengths, and modular attachments enhance the frame’s functionality. These tailored configurations ensure the lifting frame can handle unique load shapes and sizes efficiently, making the EZ Bar system adaptable to virtually any lifting scenario, from simple placements to complex installations.
Designed By Trades People For Trades People
All components are made from load-tested high-grade steel that complies with stringent safety standards, guaranteeing durability and resilience.
The system’s load capacity varies with configuration but is designed to handle substantial weights safely. Please consult specific model details for exact figures.
Yes, the EZ Bar is suitable for integration with automated systems, offering adaptability and precise control for advanced lifting operations.
Thanks to its modular design, the frame can be assembled quickly and easily, often within minutes, depending on the complexity of the configuration.
