Explore our selection of single hoists for sale, offering robust and reliable solutions for industrial and agricultural needs, tailored to elevate your project’s efficiency and safety.

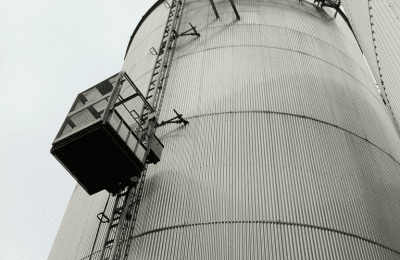

Purchasing a single cab hoist for permanent installation offers numerous benefits for long-term efficiency and safety. A single cab hoist ensures reliable vertical transportation of personnel and materials, improving workflow on multi-level job sites or permanent structures. Its durability and robust design make it ideal for continuous use, reducing the need for frequent replacements or repairs. Additionally, installing a permanent hoist enhances site safety by minimizing manual lifting and lowering, ultimately reducing the risk of accidents. The hoist also contributes to increased productivity, as it can move loads quickly and efficiently, allowing workers to focus on more critical tasks.
If you’re looking to rent a construction hoist, Bigfoot Crane Company offers just that service. Click here to view our hoist rentals.
| Specification | 4500 Series | 6000 Series | 7000 Series |
|---|---|---|---|
| Maximum Load | 2,041 kg (4,500 lbs) | 2,722 kg (6,000 lbs) | 3,175 kg (7,000 lbs) |
| Number of Persons | 25 | 30 | 35 |
| Lifting Speed | Normal: 0-40 m/min0-130 ft/min, Medium: 0-61 m/min0-200 ft/min, High: 0-91 m/min0-300 ft/min, Super High: 0-101 m/min0-330 ft/min | ||
| Maximum Lifting Height | 399 m1,310 ft | 399 m1,310 ft | 399 m1,310 ft |
| Internal Car Dimensions | 1.45 m x 3.81 m x 2.08 m57 in x 150 in x 82 in | 1.98 m x 4.98 m x 3.00 m78 in x 196 in x 118 in(extended) | 1.98 m x 4.98 m x 3.00 m78 in x 196 in x 118 in (extended) |
| Enclosure Dimensions | 2.11 m x 4.06 m x 2.49 m83 in x 160 in x 98 in | 4.11 m x 4.06 m x 2.49 m162 in x 160 in x 98 in | 4.11 m x 4.06 m x 2.49 m162 in x 160 in x 98 in |
| Door Opening | 2.13 m to 2.95 m7 ft to 9 ft 8 in | 2.13 m to 2.95 m7 ft to 9 ft 8 in | 2.13 m to 2.95 m7 ft to 9 ft 8 in |
| Power Supply | 460V 60Hz 3 phases | 460V 60Hz 3 phases | 460V 60Hz 3 phases |
| Car Weight | 2,495 kg to 2,993 kg 5,500 lbs to 6,600 lbs | 2,495 kg to 2,993 kg5,500 lbs to 6,600 lbs | 2,495 kg to 2,993 kg 5,500 lbs to 6,600 lbs |
| Complete Unit Weight | 3,702 kg to 4,400 kg 8,160 lbs to 9,700 lbs | 3,702 kg to 4,400 kg 8,160 lbs to 9,700 lbs | 3,702 kg to 4,400 kg 8,160 lbs to 9,700 lbs |
| Mast Section Weight | 150 kg to 175 kg330 lbs to 385 lbs | 150 kg to 175 kg330 lbs to 385 lbs | 150 kg to 175 kg330 lbs to 385 lbs |
| Mast Section Size (W x L x H) | 0.66 m x 0.89 m x 1.52 m26 in x 35 in x 60 in | 0.66 m x 0.89 m x 1.52 m26 in x 35 in x 60 in | 0.66 m x 0.89 m x 1.52 m26 in x 35 in x 60 in |
| Max Distance Between Wall Ties | 9.14 m30 ft = max allowed by ANSI | 9.14 m30 ft = max allowed by ANSI | 9.14 m30 ft = max allowed by ANSI |
| Max Overhang of Mast | 9.14 m30 ft = max allowed by ANSI | 9.14 m30 ft = max allowed by ANSI | 9.14 m30 ft = max allowed by ANSI |
Purchasing a single cab hoist for permanent installation offers numerous benefits for long-term efficiency and safety. A single cab hoist ensures reliable vertical transportation of personnel and materials, improving workflow on multi-level job sites or permanent structures. Its durability and robust design make it ideal for continuous use, reducing the need for frequent replacements or repairs. Additionally, installing a permanent hoist enhances site safety by minimizing manual lifting and lowering, ultimately reducing the risk of accidents. The hoist also contributes to increased productivity, as it can move loads quickly and efficiently, allowing workers to focus on more critical tasks.
