Explore our selection of dual cab hoists for sale, offering robust and reliable solutions for industrial and agricultural needs, tailored to elevate your project’s efficiency and safety.

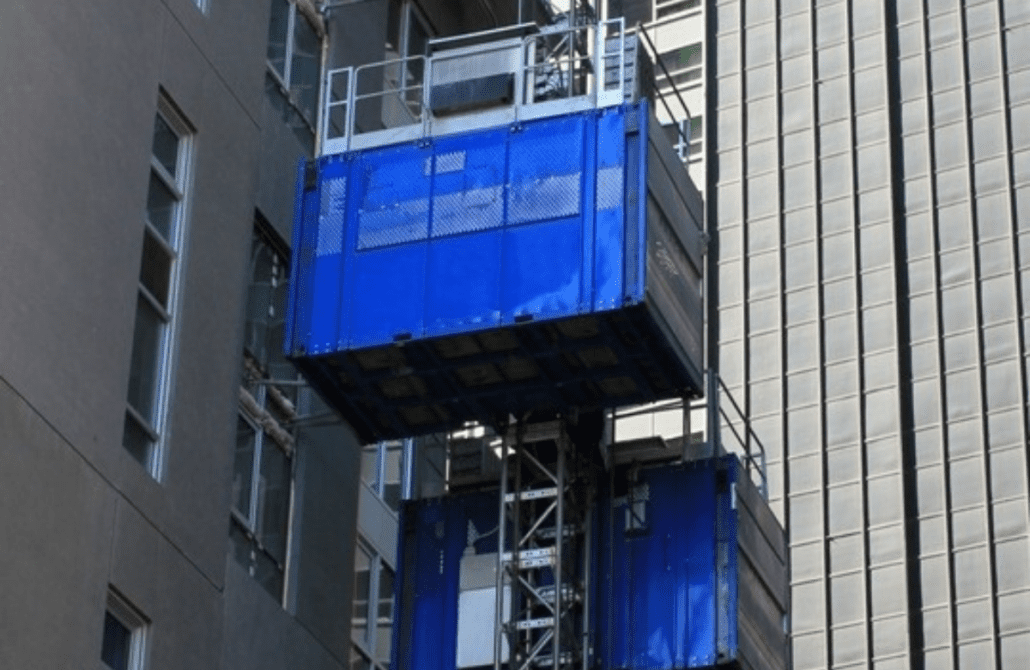

Purchasing a dual cab hoist for permanent installation offers significant advantages in both efficiency and versatility. A dual cab hoist allows for the simultaneous transport of personnel and materials in two separate cabs, reducing wait times and streamlining operations on multi-level job sites. This setup enhances productivity by enabling continuous lifting and lowering operations, ensuring that one cab is always in use. Its durable, heavy-duty design makes it ideal for long-term projects, providing reliable performance with minimal maintenance. Additionally, a permanent installation ensures a safer, more controlled environment for moving heavy loads, minimizing the risks associated with manual handling and increasing overall operational safety.
If you’re looking to rent a construction hoist, Bigfoot Crane Company offers just that service. Click here to view our hoist rentals.
| Specification | 4500 Series | 6000 Series | 7000 Series |
|---|---|---|---|
| Maximum Load | 2,041 kg (4,500 lbs) per cab | 2,722 kg (6,000 lbs) per cab | 3,175 kg (7,000 lbs) per cab |
| Number of Persons | 25 per cab | 30 per cab | 35 per cab |
| Lifting Speed | Normal: 0-40 m/min (0-130 ft/min), Medium: 0-61 m/min (0-200 ft/min), High: 0-91 m/min (0-300 ft/min), Super High: 0-101 m/min (0-330 ft/min) | ||
| Maximum Lifting Height | 399 m (1,310 ft) | 399 m (1,310 ft) | 399 m (1,310 ft) |
| Internal Car Dimensions | 1.45 m x 3.81 m x 2.08 (57 in x 150 in x 82 in) (57 in x 150 in x 82 in) per cab | 1.98 m x 4.98 m x 3.00 (57 in x 150 in x 82 in) (78 in x 196 in x 118 in) per cab (extended) | 1.98 m x 4.98 m x 3.00 (57 in x 150 in x 82 in) (78 in x 196 in x 118 in) per cab (extended) |
| Enclosure Dimensions | 2.11 m x 4.06 m x 2.49 m (83 in x 160 in x 98 in) per cab | 4.11 m x 4.06 m x 2.49 m (162 in x 160 in x 98 in) per cab | 4.11 m x 4.06 m x 2.49 m (162 in x 160 in x 98 in) per cab |
| Door Opening | 2.13 m to 2.95 m (7 ft to 9 ft 8 in) | 2.13 m to 2.95 m (7 ft to 9 ft 8 in) | 2.13 m to 2.95 m (7 ft to 9 ft 8 in) |
| Power Supply | 460V 60Hz 3 phases | 460V 60Hz 3 phases | 460V 60Hz 3 phases |
| Car Weight | 2,495 kg to 2,993 kg (5,500 lbs to 6,600 lbs) per cab | 2,495 kg to 2,993 kg (5,500 lbs to 6,600 lbs) per cab | 2,495 kg to 2,993 kg class=”bf-english bf-hide”(5,500 lbs to 6,600 lbs) per cab |
| Complete Unit Weight | 3,702 kg to 4,400 kg (8,160 lbs to 9,700 lbs) per cab | 3,702 kg to 4,400 kg (8,160 lbs to 9,700 lbs) per cab | 3,702 kg to 4,400 kg (8,160 lbs to 9,700 lbs) per cab |
| Mast Section Weight | 150 kg to 175 kg (330 lbs to 385 lbs) | 150 kg to 175 kg (330 lbs to 385 lbs) | 150 kg to 175 kg (330 lbs to 385 lbs) |
| Mast Section Size (W x L x H) | 0.66 m x 0.89 m x 1.52 m(26 in x 35 in x 60 in) | 0.66 m x 0.89 m x 1.52 m(26 in x 35 in x 60 in) | 0.66 m x 0.89 m x 1.52 m(26 in x 35 in x 60 in) |
| Max Distance Between Wall Ties | 9.14 m (30 ft) = max allowed by ANSI | 9.14 m (30 ft) = max allowed by ANSI | 9.14 m (30 ft) = max allowed by ANSI |
| Max Overhang of Mast | 9.14 m (30 ft) = max allowed by ANSI | 9.14 m (30 ft) = max allowed by ANSI | 9.14 m (30 ft) = max allowed by ANSI |
Purchasing a dual cab hoist for permanent installation offers significant advantages in both efficiency and versatility. A dual cab hoist allows for the simultaneous transport of personnel and materials in two separate cabs, reducing wait times and streamlining operations on multi-level job sites. This setup enhances productivity by enabling continuous lifting and lowering operations, ensuring that one cab is always in use. Its durable, heavy-duty design makes it ideal for long-term projects, providing reliable performance with minimal maintenance. Additionally, a permanent installation ensures a safer, more controlled environment for moving heavy loads, minimizing the risks associated with manual handling and increasing overall operational safety.
